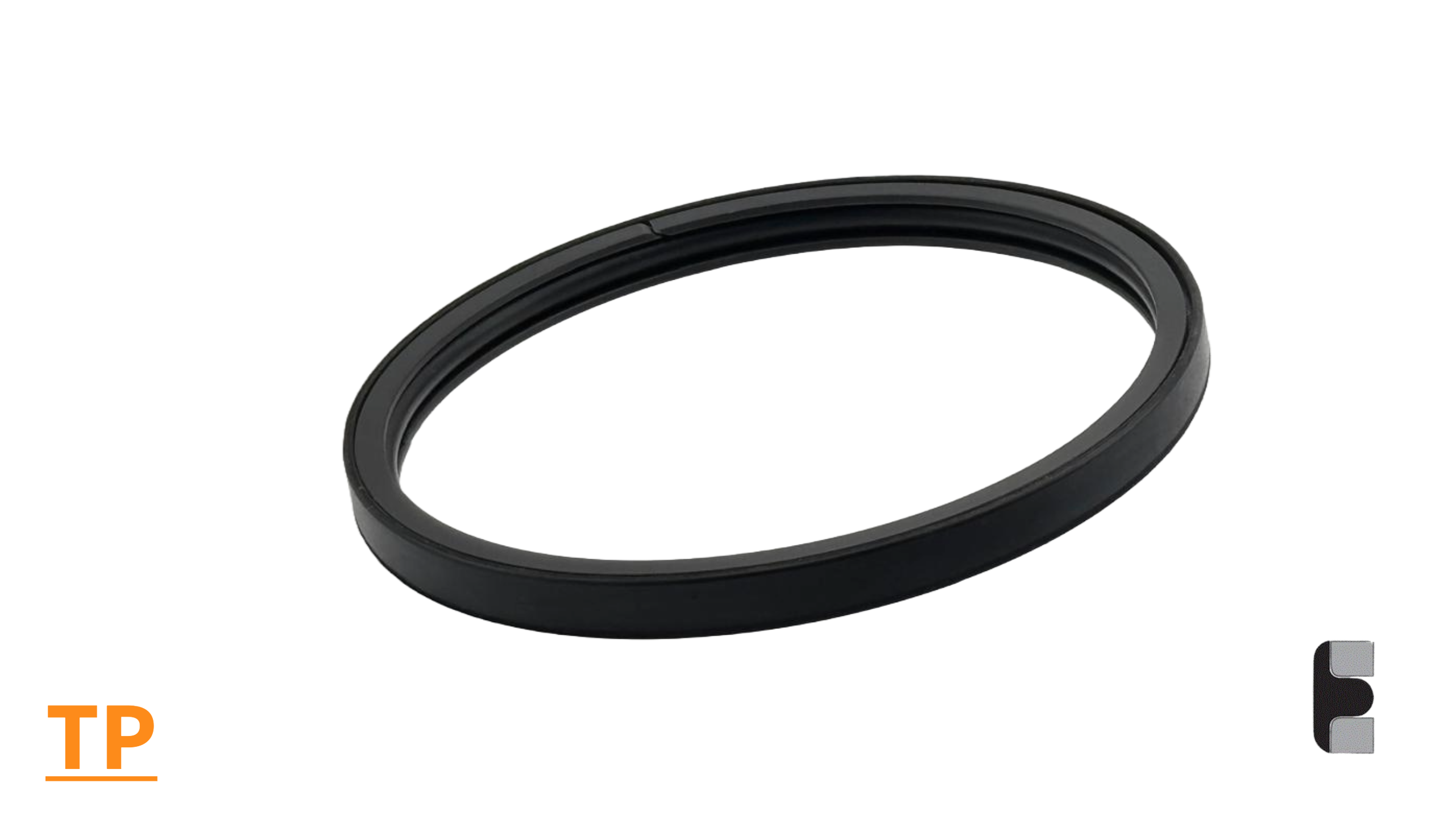

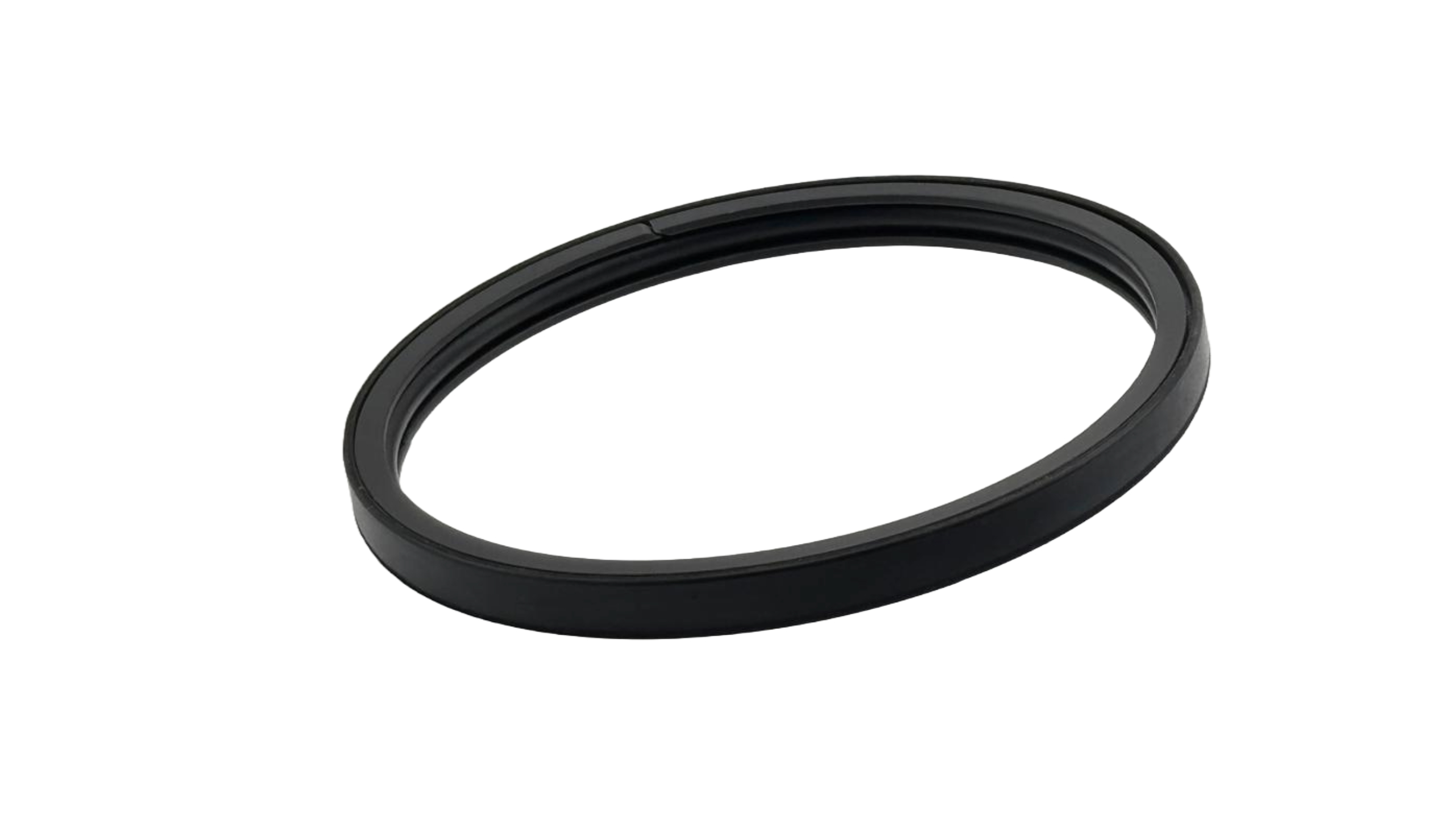

A double acting piston seal, consisting of an NBR sealing element and a hard split back up ring on each side of the sealing element.

Properties:

Material: NBR + PA
Temperature: -40°C / +100°C
Speed: ≤ 1 m/s
Pressure: ≤ 345 Bar

We have different sizes available, with a delivery time of 1-3 working days.

Didn't find what you need?
Or is the indicated delivery time too long?
Please feel free to contact us via email info@hydroseals.nl or via +31 (0) 85 - 08 06 119 and we will be happy to help you.

TP

Search:

TP-011

Stock:4

Inner: 19.25
Pistonsize: 25.4
Height: 4.7

€11.56

TP-019

Stock:4

Inner: 31.95
Pistonsize: 38.1
Height: 4.7

€6.37

TP-028

Stock:2

Inner: 54.08
Pistonsize: 63.5
Height: 7.11

€19.01

TP-334-WB

Stock:2

Inner: 66.8
Pistonsize: 76.2
Height: 10.77

€42.91

TP-035

Stock:2

Inner: 79.53
Pistonsize: 88.9
Height: 7.11

€18.47

TP-039

Stock:2

Inner: 92.23
Pistonsize: 101.6
Height: 7.11

€26.75

TP

A double acting piston seal, consisting of an NBR sealing element and a hard split back up ring on each side of the sealing element.

Properties:

Material: NBR + PA
Temperature: -40°C / +100°C
Speed: ≤ 1 m/s
Pressure: ≤ 345 Bar

We have different sizes available, with a delivery time of 1-3 working days.

Didn't find what you need?
Or is the indicated delivery time too long?
Please feel free to contact us via email info@hydroseals.nl or via +31 (0) 85 - 08 06 119 and we will be happy to help you.
